Macchinario farmaceutico Co., srl di Shanghai Tianhe.
Macchinario farmaceutico Co., srl di Shanghai Tianhe.
| Spessore massimo: | 6 mm | diametro del prodotto: | 80mm massimi |
|---|---|---|---|
| Muore il numero: | 29 | Nome della produzione: | Tianhe 31d Rotary Tablet Press Machine |
| Profondità di riempimento massima: | 15 mm | Sistema di controllo: | Plc |
| Pressione di lavoro massima: | 100kn | Velocità di rotazione: | 30R/min |
| Energia: | 5,5 kW | Tipo: | compressa che fa macchina |
| Dopo il servizio di garanzia: | Supporto tecnico video, supporto online | Prodotto: | tutti i tipi di compresse |

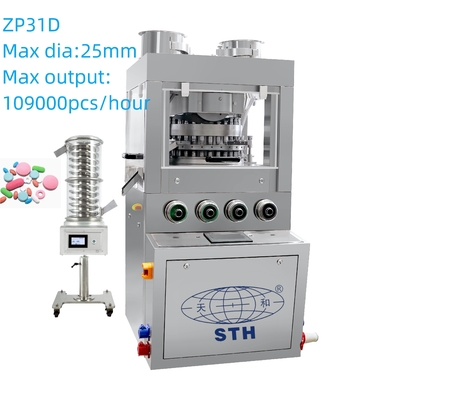

TIANHE ZP31D Touch screen Rotary tablet press machine For pharmcy, foods,Chemical industrial
TIANHE ZP31D Touch screen Rotary tablet press machine For pharmcy, foods,Chemical industrial Advantage
1.Made of stainless steel, the housing is fully closed
2. HMI control
3.Max diamter 25mm, D tooling

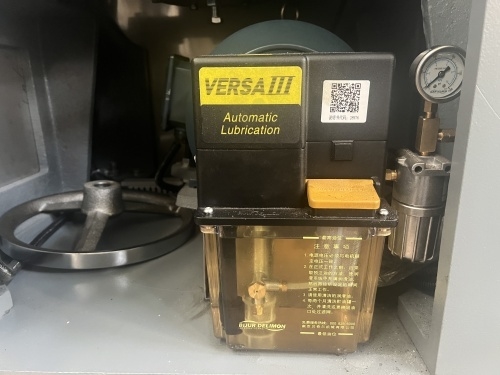

4. Automatic lubrication oil system
5. 5.5kw motor
Technical specification
|
Model |
ZP-29 |
ZP-35 |
ZP-39 |
ZP-41 |
|
|
Number of Stations |
29 |
35 |
39 |
41 |
|
|
Tooling Standard |
D |
B |
BB |
BBS |
|
|
Max Pressure (KN) |
100 |
||||
|
|
Round tablet |
25 |
18 |
13 |
11 |
|
Max Tablet Diameter (mm) |
Irregular tablet |
25 |
19 |
16 |
13 |
|
Max Filling Depth (mm) |
15 |
15 |
15 |
15 |
|
|
Max Tablet Thickness (mm) |
6 |
6 |
6 |
6 |
|
|
Max Turret Speed (r/min) |
30 |
||||
|
Max Production Capacity (pcs/h) |
104400 |
126000 |
140400 |
147600 |
|
|
Motor Power (kw) |
5.5 |
||||
|
Overall Size (mm) |
960×1150×1900 |
||||
|
Machine Weight (kg) |
2000 |
||||
Application:
This machine is a double-press type continuous automatic tablet press machine for pressing granular raw materials into tablets and conforms GMP standard. It is mainly used in pharmaceutical, chemistry, foodstuff, electronic industries and suitable for make large size tablets, such as: salt tablet, milk tablet, effervescent tablet, etc.
Features
1. Made of stainless steel, the housing is fully closed. The surface of the rotary turret is covered with a hardened layer so that the turret surface is wear resistant. The machine conforms to GMP requirements.
2. Adopt transparent windows, tableting state can be observed clearly. The windows can be opened, cleaning and maintenance is easy.
3. All the drive devices are located inside the machine so keep the machine clean.
4. The machine can stop automatically in case of operpressure.
Detail information
Company profile
SHANGHAI TIANHE PHARMACEUTICAL MACHIENRY CO.,LTD (STH) was founded in 1992. The company is located in Chongming island Shanghai,China. In the 40 years since its establishment, STH has successfully achieved an extraordinary leap based on the strategy of "brand-opening and terminal-oriented". Development and become a mature enterprise in the tablet press machine industry in one fell swoop.
STH mainly produces tablet press machine, packing machine, processing equipment suitable in Pharmacy, Foods, Chemical industry. And has independent large-scale research and development institutions in the same industry in China, a complete manufacturing system and a huge marketing service network. It is an international manufacturing company integrating R&D, manufacturing, marketing and service.
STH’s machines have been sold all over the world (70 countries), such as: Europe, Canada, New Zealand, Southeast Asia,Pakistan, Iran, Algeria etc. The quality of the products has been significantly improved in Pharmacy, Foods, Chemical industry, and they are favored by customers at home and abroad.
Company mission: focus on quality and service
Service:
Warranty:
Our machine is under warranty for 12 months. Most components are free-replacement warranty,but the client needs to pay the DHL fee . Artificial and thunder strike damage is beyond the scope of the warranty. Spare parts are not in the warranty time.
After Sales Service :
Our engineer is available to provide after sales service oversea. Customers need to afford
the visa, tickets , accommodation, hotel and 100 USD per day.
Technical Support: We will be a consultant for clients about the technical problem before
order, provide drawing specification, design customized project, analyze and solve
technical problem.
Operation Training:
We are pleased to receive client’s technician to our factory and learn the operation course,
take photo, video.
