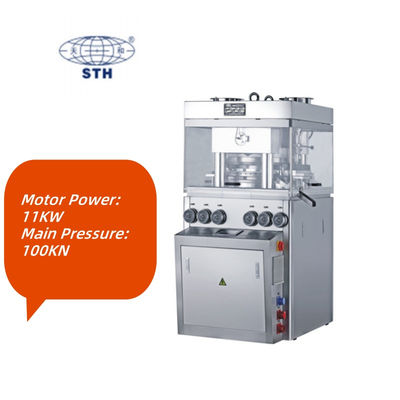

GZP55 High Speed Rotary Tablet Press Machine with 100kN Main Pressure 20kN Pre-Pressure and 396000PCS/H Production Capacity

Cina GZP55 High Speed Rotary Tablet Press Machine with 100kN Main Pressure 20kN Pre-Pressure and 396000PCS/H Production Capacity fornitore
GZP55 High Speed Rotary Tablet Press Machine with 100kN Main Pressure 20kN Pre-Pressure and 396000PCS/H Production Capacity fornitore GZP55 High Speed Rotary Tablet Press Machine with 100kN Main Pressure 20kN Pre-Pressure and 396000PCS/H Production Capacity fornitore GZP55 High Speed Rotary Tablet Press Machine with 100kN Main Pressure 20kN Pre-Pressure and 396000PCS/H Production Capacity fornitore GZP55 High Speed Rotary Tablet Press Machine with 100kN Main Pressure 20kN Pre-Pressure and 396000PCS/H Production Capacity fornitore GZP55 High Speed Rotary Tablet Press Machine with 100kN Main Pressure 20kN Pre-Pressure and 396000PCS/H Production Capacity fornitore GZP55 High Speed Rotary Tablet Press Machine with 100kN Main Pressure 20kN Pre-Pressure and 396000PCS/H Production Capacity fornitore

Grande immagine :  GZP55 High Speed Rotary Tablet Press Machine with 100kN Main Pressure 20kN Pre-Pressure and 396000PCS/H Production Capacity

Dettagli:

Certificazione: CE Certified, GMP Compliant, ISO Certified, CE, GMP, ISO,EAC

Termini di pagamento e spedizione:

Quantità di ordine minimo: 1
Prezzo: 35000
Contatto
Descrizione di prodotto dettagliata
Modello n.: GZP55 Materiale: Acciaio inossidabile
Pressione principale: 100kn Pre-pressione: 20kn
Sistema di controllo: PLC e touchscreen Dispositivo alimentare: Forzare l'alimentatore
sistema di lubrificazione: Sistema di lubrificazione automatico Potenza motoria: 11KW
Diametro massimo della compressa: 25 mm Capacità produttiva: 396000pcs/h
Velocità della torretta massima: 60r/min Profondità di riempimento massima: 15 mm
Spessore massimo della compressa: 6 mm Dimensione complessiva: 1370*1170*1800mm
Peso della macchina: 3200 kg
Evidenziare:

100kN Main Pressure Rotary Tablet Press

,

20kN Pre-Pressure Tablet Press Machine

,

396000PCS/H Production Capacity High Speed Tablet Press

GZP55 Series High Speed Rotary Tablet Press Machine
GZP55 High Speed Rotary Tablet Press Machine with 100kN Main Pressure 20kN Pre-Pressure and 396000PCS/H Production Capacity 0
Application

This double-sided rotary tablet press machine processes granular materials into round, irregular, or double-side engraved tablets. It serves pharmaceutical, chemical, food, and electronic industries.

Key Features
  • High-speed operation with multiple punches and double press rollers for mass production
  • Stainless steel construction with hardened rotary turret surface for wear resistance (GMP compliant)
  • Precision tablet pressing system with twice compression forming for consistent weight
  • Double impeller force feeder improves granule flow and filling accuracy
  • Automatic central lubrication system extends machine lifespan
  • Oil-proof, dust-proof, and noise-proof design
  • Overpressure protection prevents punch damage
  • PLC and touch screen control for easy operation
  • Optional capability for double-layer tablet production
Technical Specifications
Model GZP-35 GZP-43 GZP-51A GZP-51B GZP-55
Number of stations 35 43 51 51 55
Tooling Standard D B BB ZP BBS
Max Tablet Diameter (mm) 25 (round)
25 (irregular)		 18 (round)
19 (irregular)		 13 (round)
16 (irregular)		 13 (round)
16 (irregular)		 11 (round)
13 (irregular)
Max Filling Depth (mm) 20 18 15 15 15
Max Production Capacity (pcs/h) 252,000 309,600 367,200 367,200 396,000
Motor Power (kw) 7.5
Machine Weight (kg) 3200

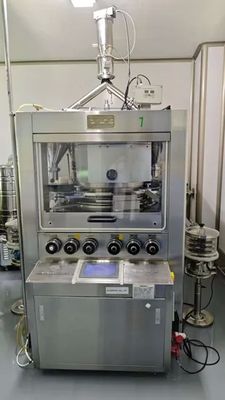

GZP55 High Speed Rotary Tablet Press Machine with 100kN Main Pressure 20kN Pre-Pressure and 396000PCS/H Production Capacity 1

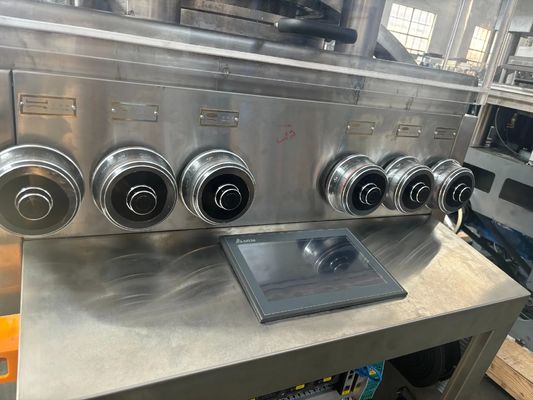

Delta 10-inch Color Touch Screen
  • Displays real-time working pressure, speed, and output data
  • 3-level management authority
  • Optional electronic signature CFR21 compliance
  • Remote access capability
  • Single value pressure display
GZP55 High Speed Rotary Tablet Press Machine with 100kN Main Pressure 20kN Pre-Pressure and 396000PCS/H Production Capacity 2
Electrical System
  • Uses premium Chinese components (Delta, Delixi)
  • Advanced tableting system with twice compression forming
GZP55 High Speed Rotary Tablet Press Machine with 100kN Main Pressure 20kN Pre-Pressure and 396000PCS/H Production Capacity 3
Automatic Lubrication System
  • Fully lubricates pressure wheel, track, and punching rod
  • Includes machine cooling fan
Protection Functions
  • Window switch
  • Motor overload protection
  • Voltage abnormal alarm
  • High temperature alarm
GZP55 High Speed Rotary Tablet Press Machine with 100kN Main Pressure 20kN Pre-Pressure and 396000PCS/H Production Capacity 4

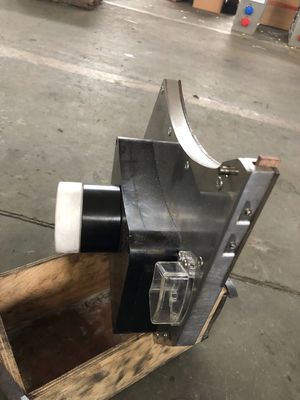

Feeder Device
  • Double impeller type force feeder improves granule flow and filling precision
GZP55 High Speed Rotary Tablet Press Machine with 100kN Main Pressure 20kN Pre-Pressure and 396000PCS/H Production Capacity 5

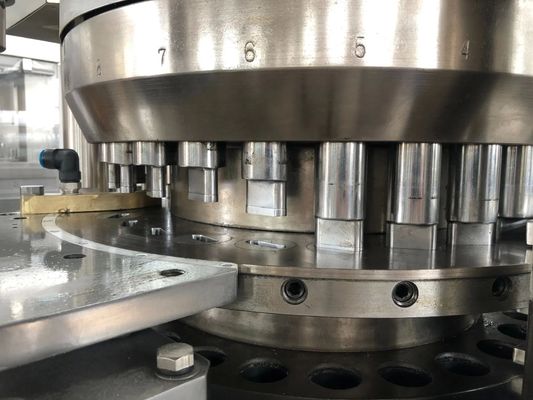

Punches & Dies (Customizable)
  • TSM-Tooling standard compliant
  • Available in various shapes: round, irregular, concave, bevel-edged, etc.
  • Material options: S7/D2, DC53, 6CrW2Si, GCr15
Packaging & Shipping
GZP55 High Speed Rotary Tablet Press Machine with 100kN Main Pressure 20kN Pre-Pressure and 396000PCS/H Production Capacity 6
  • Export-standard wooden packaging (free of charge)
  • 15-45 working days delivery time
  • Shipping options: SEA, AIR, EXPRESS
Frequently Asked Questions
Q: Where is your factory located?

A: Our factory is in Shanghai's Chongming District. We welcome visits with prior arrangement.

Q: How can I verify machine suitability for my product?

A: Send samples for testing - we'll provide videos, photos, or live demonstrations.

Q: How can I trust your company for first-time business?

A: We recommend using Trade Assurance Service to protect your transaction.

Q: What after-sales support do you provide?

A: 1-year warranty with 24-hour technical support and lifetime service commitment.

Q: How to contact you?

A: Use the contact information on this page (email, WeChat, WhatsApp, phone).

Certifications
GZP55 High Speed Rotary Tablet Press Machine with 100kN Main Pressure 20kN Pre-Pressure and 396000PCS/H Production Capacity 7
Company Profile
GZP55 High Speed Rotary Tablet Press Machine with 100kN Main Pressure 20kN Pre-Pressure and 396000PCS/H Production Capacity 8 GZP55 High Speed Rotary Tablet Press Machine with 100kN Main Pressure 20kN Pre-Pressure and 396000PCS/H Production Capacity 9

Shanghai Tianhe Pharmaceutical Machinery Co., Ltd. is an innovative manufacturer with 30+ years experience, exporting to 70+ countries. We provide complete solutions for pharmaceutical and food processing equipment.

As a high-tech enterprise, we control all manufacturing processes from casting to final assembly. We emphasize quality control and customized solutions based on customer requirements analysis.

Our machines feature:

  • Omron PLC control systems
  • Advanced technology integration
  • Precision engineering
  • Reliable performance
  • Easy operation and maintenance
