Intellect High Efficient Rotary Tablet Press B Tooling Double Press GMP

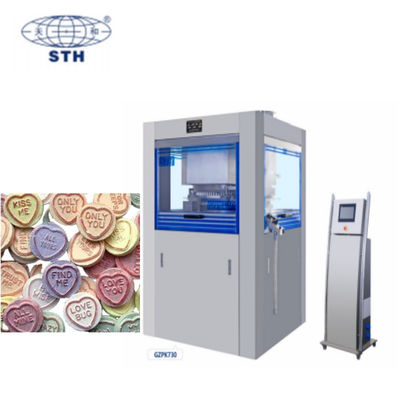

GZPK730 Series High Speed Rotary Tablet Press Machine
Product Description
Application
This double side rotary tablet press machine converts granular materials into round, irregular, or double-side engraved tablets. Ideal for pharmaceutical, chemical, food, and electronic industries.
Key Features
- High-speed operation with multiple punches and double press rollers for mass production
- Stainless steel construction with fully enclosed housing and hardened turret surface for GMP compliance
- Advanced tableting system with twice compression forming for reliable performance and consistent tablet weight

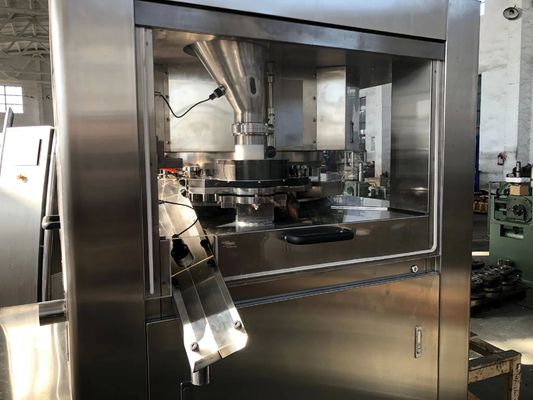

- Transparent glass enclosure for contamination-free compression compartment
- Double impeller force feeder for improved granule flow and filling precision
- Double-side lifting tooling track for balanced stress and wear resistance
- High-performance electrical control system for precise processing
- Automatic central lubrication system extends machine lifespan
Special Notes for GZPK730 Model
- Advanced operation system with tablet weight control for easy parameter adjustment
- Precise detection and adjustment of tablet hardness and weight
- Comprehensive process parameter recording for production batch control
Technical Specifications
| Model |
GZPK-51 |
GZPK-63 |
GZPK-75 |
GZPK-81 |
| Number of Station |
51 |
63 |
75 |
81 |
| Tooling Standard |
D |
B |
BB |
BBS |
| Max Main Pressure (KN) |
100 |
| Max Tablet Diameter (mm) |
25 |
18 |
13 |
13 |
| Max Filling Depth (mm) |
20 |
18 |
15 |
15 |
| Max Turret Speed (r/min) |
70 |
| Max Production Capacity (pcs/h) |
428,400 |
529,200 |
630,000 |
680,000 |
| Motor Power (KW) |
11 |
| Dimensions (mm) |
1700×1600×1900 |
| Weight (kg) |
4800 |
Detailed Features
HMI Touch Screen (10 inch Delta)
- Displays pressure value for each punch
- Automatic adjustment of main pressure, pre-pressure and tablet weight
- 3-level management authority with product formula management
- Optional CFR 21 part 11 electronic record and signature function
- Formula management capability

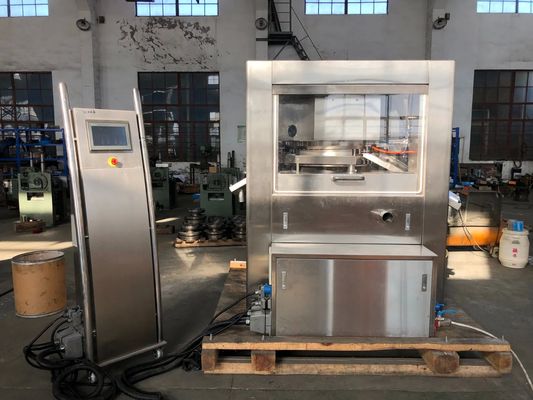

- Industrial computer with independent electrical cabinet
Electrical System
- International brand components (Delta)
- Separated electrical control cabinet
- 15KW main motor
Automatic Lubrication System
- Lubrication oil for punches and tracks
- Grease oil for shafts and bearings
Turret Structure and Materials
- Three-part turret structure
- HT300 & 2Cr13 materials
- Hardened surface layer for wear resistance
- Upper punch with oil protect ring and dust proof ring
- Lower punch with dust proof ring
- Fully enclosed working turret
- Double-side lifting tooling track for balanced stress

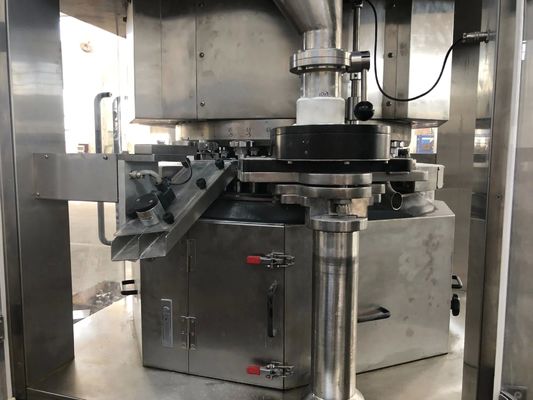

Force Feeder System
- Double impeller type for improved granule flow
- Ensures filling precision
- Stainless steel hopper (SS316L) with powder level sensor
- Adjustable powder flow valve
- Food grade silicone connecting sleeve
Safety and Control Systems
- Upper & lower punch tightness protection sensor
- Automatic stop when powder sticks on punch
- Servo motor control for consistent tablet weight
- Comprehensive alarm system
- Tablet rejection system
Punches & Dies
- TSM-Tooling standard
- Customizable to customer requirements
- Various types available: round, irregular, concave, bevel edged, etc.
- Material options: S7/D2, DC53, 6CrW2Si
Certifications
Packaging & Shipping

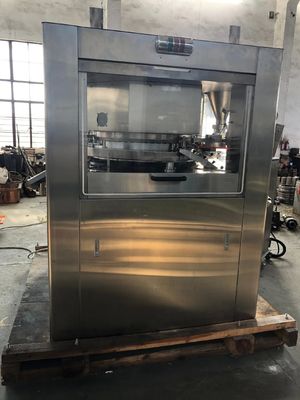

- Export-standard wooden packaging included
- 15-45 working days delivery time
- Multiple transportation options: SEA, AIR, EXPRESS
Product Samples
Company Exhibition
Company Profile
Shanghai Tianhe Pharmaceutical Machinery Co., Ltd. is an innovative manufacturer and total-solution supplier for pharmaceutical processing machines and packaging equipment with over 30 years of experience, exporting to more than 70 countries.
As a high-technology enterprise, we handle all processes from casting to final assembly. We emphasize quality control and customized solutions based on customer requirements, with machines featuring advanced technology, Omron PLC control, and reliable performance.
