Dettagli:
Termini di pagamento e spedizione:
|
| Modello n.: | GZPK-71 | Pre-pressione massima: | 20kn |
|---|---|---|---|
| Profondità di riempimento massima: | 11 mm | Capacità di produzione massima: | 596400 pezzi/h |
| Pressione principale massima: | 100kn | Standard di strumenti: | BBS |
| Energia: | 11KW | Tipo rotante: | Double Rotary Press |
| Numero di stazione: | 45 | Diametro massimo della compressa: | 25 mm |
| Spessore massimo della compressa: | 8 mm | Velocità della torretta massima: | 70 r/min |
| Dimensione complessiva: | 1530*1250*1900mm | Peso della macchina: | 4300 kg |

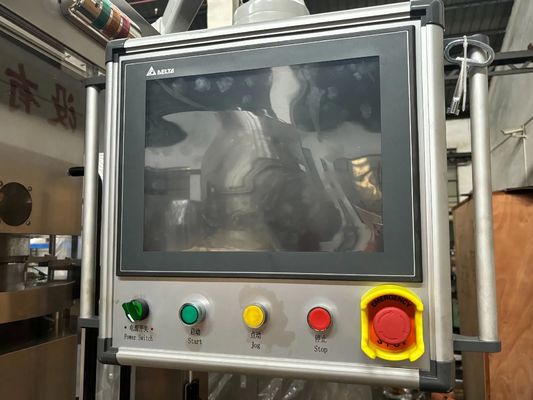

| Metodo del regolatore: | PLC automatico e touchscreen | ||
| Evidenziare: | 596400 PCS/H Capacity Rotary Tablet Press,Automatic PLC Pill Making Machine,24 Hour Online Service Pharmaceutical Machinery |
||

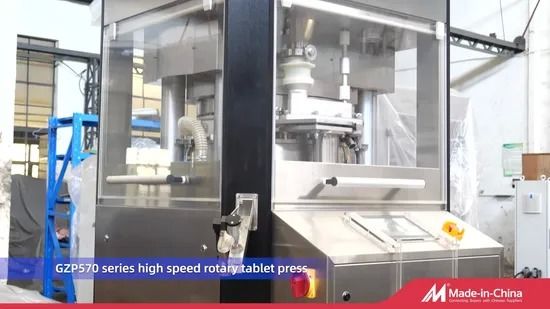

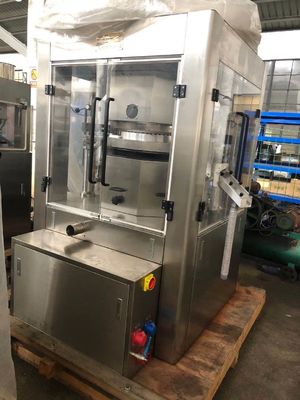

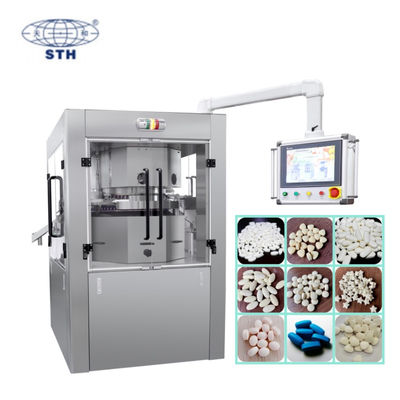

This double-sided rotary tablet press machine transforms granular materials into round, irregular, or double-side engraved tablets. Ideal for pharmaceutical, chemical, food, and electronic industries.
| Model | GZP(K)-45 |
|---|---|
| Number of Station | 45 |
| Tooling Standard | D |
| Max Main Pressure (KN) | 100 |
| Max Pre-pressure (KN) | 20 |
| Max Tablet Diameter (mm) | 25 (Round/Irregular) |
| Max Filling Depth (mm) | 20 |
| Max Tablet Thickness (mm) | 8 |
| Max Turret Speed (r/min) | 70 |
| Max Production Capacity (pcs/h) | 378,000 |
| Motor Power (KW) | 11 |
| Overall Size (mm) | 1530×1250×1900 |
| Machine Weight (kg) | 4300 |
Our factory is in Shanghai, Chongming District. We welcome visits by appointment.
Send us samples for testing - we'll provide videos and detailed reports of the results.
We recommend using Trade Assurance Service for secure transactions and guaranteed service.
1-year warranty with 24-hour technical support response and lifetime assistance.
Shanghai Tianhe Pharmaceutical Machinery Co., Ltd. is a leading manufacturer of pharmaceutical processing machines with over 30 years of experience, exporting to 70+ countries. We specialize in customized solutions with advanced technology, strict quality control, and comprehensive service.
